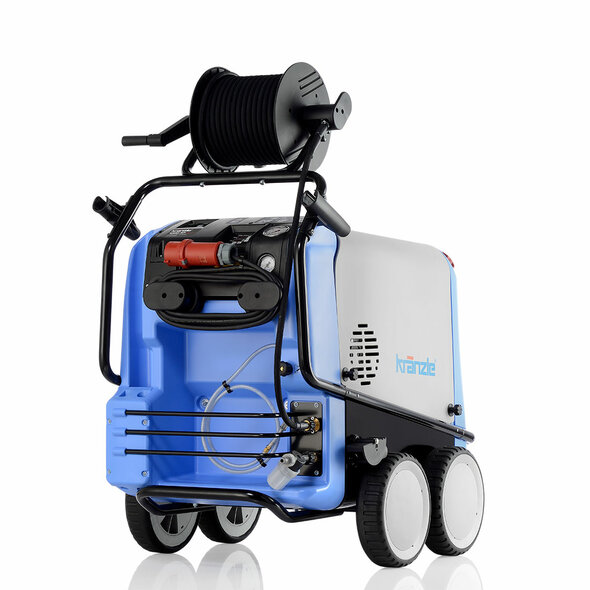

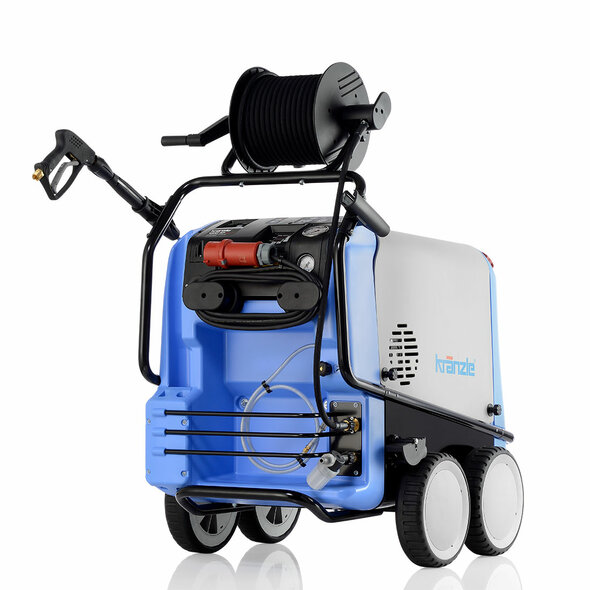

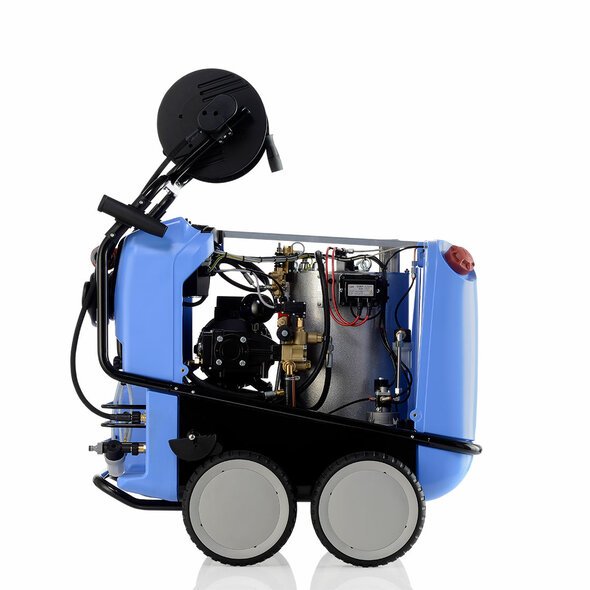

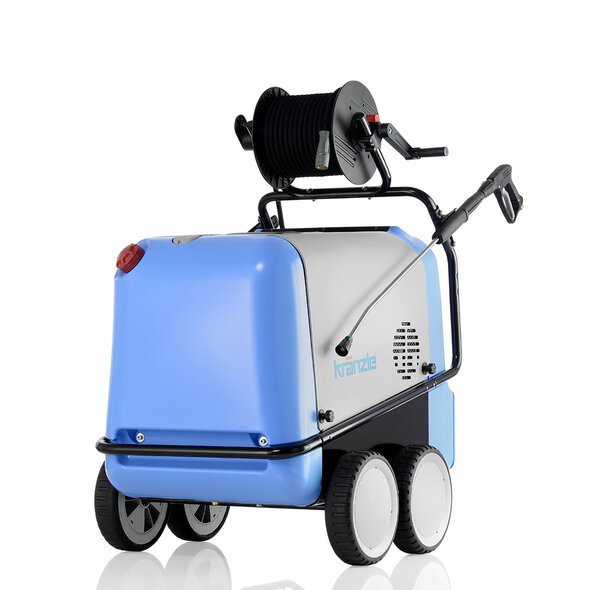

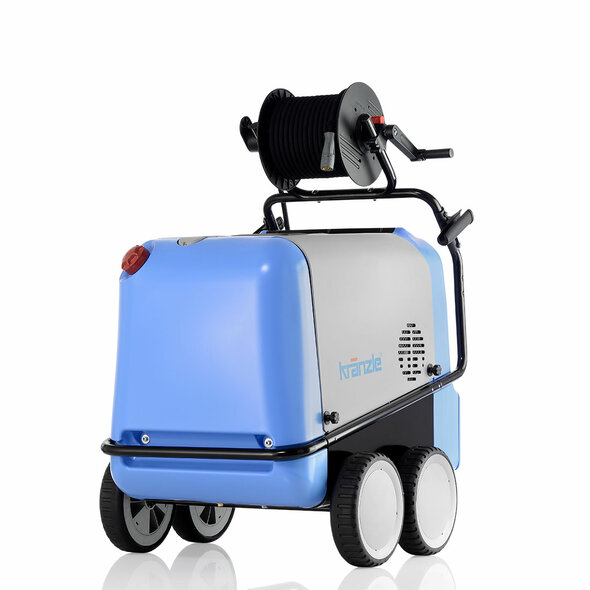

Pressure Washer
therm-RP 1000 T

Ord. no. 638212

The Kränzle therm-RP series is particularly suitable for applications where an above-average rinsing effect at high working pressure is required. Thanks to the innovative inline pump, these hot water units offer a water output of up to 1600 l/h as well as other impressive features.

Quick-change plug-in system D12
Kränzle in-line pump
Total stop system with delayed motor shutdown
Safety shutdown
Pressure regulation
Twist-stop anti-twist protection
Suction of cleaning agent
Parking brake
Direct suction: Suction height 2.5 m
Water tank: volume 12 l
Digital thermostat
Flow monitor
Combustion chamber pre-ventilation
Optical flame monitoring
Overheating protection
Burner stop in case of fuel oil shortage
Operating hours counter
Fuel tank: 35 l
Removable hood
Ordering system
Digital control panel
optical flame monitoring and overheating protection

Operating pressure: 70-200 bar

Water output: 16.6 l/min

Connection Voltage: 400 V

Connection Phase: 3 ~

Connection Frequency: 50 Hz

Hot water output: 12-80 °C

Technical details

		therm-RP 900 T Ord. no. 638110	therm-RP 1000 Ord. no. 638202	therm-RP 1000 T Ord. no. 638212	therm-RP 1000 EH Ord. no. 638252	therm-RP 1000 T EH Ord. no. 638262	therm-RP 1200 Ord. no. 638402	therm-RP 1200 T Ord. no. 638412	therm-RP 1400 Ord. no. 638600	therm-RP 1400 T Ord. no. 638610	therm-RP 1600 Ord. no. 638800	therm-RP 1600 T Ord. no. 638810
Ord. no.		638110	638202	638212	638252	638262	638402	638412	638600	638610	638800	638810
Operating pressure	bar	therm-RP 900 T 70-170 bar	therm-RP 1000 70-200 bar	therm-RP 1000 T 70-200 bar	therm-RP 1000 EH 70-200 bar	therm-RP 1000 T EH 70-200 bar	therm-RP 1200 70-190 bar	therm-RP 1200 T 70-190 bar	therm-RP 1400 70-170 bar	therm-RP 1400 T 70-170 bar	therm-RP 1600 70-150 bar	therm-RP 1600 T 70-150 bar
Operating pressure	MPa	therm-RP 900 T 7-17 MPa	therm-RP 1000 7-20 MPa	therm-RP 1000 T 7-20 MPa	therm-RP 1000 EH 7-20 MPa	therm-RP 1000 T EH 7-20 MPa	therm-RP 1200 7-19 MPa	therm-RP 1200 T 7-19 MPa	therm-RP 1400 7-17 MPa	therm-RP 1400 T 7-17 MPa	therm-RP 1600 7-15 MPa	therm-RP 1600 T 7-15 MPa
Water output	l/h	therm-RP 900 T 900 l/h	therm-RP 1000 1000 l/h	therm-RP 1000 T 1000 l/h	therm-RP 1000 EH 1000 l/h	therm-RP 1000 T EH 1000 l/h	therm-RP 1200 1200 l/h	therm-RP 1200 T 1200 l/h	therm-RP 1400 1400 l/h	therm-RP 1400 T 1400 l/h	therm-RP 1600 1600 l/h	therm-RP 1600 T 1600 l/h
Admissible overpressure	bar	therm-RP 900 T 190 bar	therm-RP 1000 220 bar	therm-RP 1000 T 220 bar	therm-RP 1000 EH 220 bar	therm-RP 1000 T EH 220 bar	therm-RP 1200 210 bar	therm-RP 1200 T 210 bar	therm-RP 1400 190 bar	therm-RP 1400 T 190 bar	therm-RP 1600 170 bar	therm-RP 1600 T 170 bar
Admissible overpressure	MPa	therm-RP 900 T 19 MPa	therm-RP 1000 22 MPa	therm-RP 1000 T 22 MPa	therm-RP 1000 EH 22 MPa	therm-RP 1000 T EH 22 MPa	therm-RP 1200 21 MPa	therm-RP 1200 T 21 MPa	therm-RP 1400 19 MPa	therm-RP 1400 T 19 MPa	therm-RP 1600 17 MPa	therm-RP 1600 T 17 MPa
Motor speed	U/min	therm-RP 900 T 1400 U/min	therm-RP 1000 1400 U/min	therm-RP 1000 T 1400 U/min	therm-RP 1000 EH 1400 U/min	therm-RP 1000 T EH 1400 U/min	therm-RP 1200 1400 U/min	therm-RP 1200 T 1400 U/min	therm-RP 1400 1400 U/min	therm-RP 1400 T 1400 U/min	therm-RP 1600 1400 U/min	therm-RP 1600 T 1400 U/min
Connection Voltage	V	therm-RP 900 T 400 V	therm-RP 1000 400 V	therm-RP 1000 T 400 V	therm-RP 1000 EH 400 V	therm-RP 1000 T EH 400 V	therm-RP 1200 400 V	therm-RP 1200 T 400 V	therm-RP 1400 400 V	therm-RP 1400 T 400 V	therm-RP 1600 400 V	therm-RP 1600 T 400 V
Connection Phase	~	therm-RP 900 T 3 ~	therm-RP 1000 3 ~	therm-RP 1000 T 3 ~	therm-RP 1000 EH 3 ~	therm-RP 1000 T EH 3 ~	therm-RP 1200 3 ~	therm-RP 1200 T 3 ~	therm-RP 1400 3 ~	therm-RP 1400 T 3 ~	therm-RP 1600 3 ~	therm-RP 1600 T 3 ~
Connection Frequency	Hz	therm-RP 900 T 50 Hz	therm-RP 1000 50 Hz	therm-RP 1000 T 50 Hz	therm-RP 1000 EH 50 Hz	therm-RP 1000 T EH 50 Hz	therm-RP 1200 50 Hz	therm-RP 1200 T 50 Hz	therm-RP 1400 50 Hz	therm-RP 1400 T 50 Hz	therm-RP 1600 50 Hz	therm-RP 1600 T 50 Hz
Connection Amperage	A	therm-RP 900 T 9,4 A	therm-RP 1000 12.5 A	therm-RP 1000 T 12.5 A	therm-RP 1000 EH 12.5 A	therm-RP 1000 T EH 12.5 A	therm-RP 1200 13,5 A	therm-RP 1200 T 13,5 A	therm-RP 1400 14,3 A	therm-RP 1400 T 14,3 A	therm-RP 1600 14,3 A	therm-RP 1600 T 14,3 A
Power intake	kW	therm-RP 900 T 5,5 kW	therm-RP 1000 7.5 kW	therm-RP 1000 T 7.5 kW	therm-RP 1000 EH 7.5 kW	therm-RP 1000 T EH 7.5 kW	therm-RP 1200 8 kW	therm-RP 1200 T 8 kW	therm-RP 1400 8 kW	therm-RP 1400 T 8 kW	therm-RP 1600 8 kW	therm-RP 1600 T 8 kW
Power output	kW	therm-RP 900 T 4,0 kW	therm-RP 1000 5.5 kW	therm-RP 1000 T 5.5 kW	therm-RP 1000 EH 5.5 kW	therm-RP 1000 T EH 5.5 kW	therm-RP 1200 6,3 kW	therm-RP 1200 T 6,3 kW	therm-RP 1400 6,3 kW	therm-RP 1400 T 6,3 kW	therm-RP 1600 6,3 kW	therm-RP 1600 T 6,3 kW
Power supply cable Length	m	therm-RP 900 T 7.5 m	therm-RP 1000 7.5 m	therm-RP 1000 T 7.5 m	therm-RP 1000 EH 7.5 m	therm-RP 1000 T EH 7.5 m	therm-RP 1200 7.5 m	therm-RP 1200 T 7.5 m	therm-RP 1400 7.5 m	therm-RP 1400 T 7.5 m	therm-RP 1600 7.5 m	therm-RP 1600 T 7.5 m
Length	mm	therm-RP 900 T 1050 mm	therm-RP 1000 1050 mm	therm-RP 1000 T 1050 mm	therm-RP 1000 EH 1050 mm	therm-RP 1000 T EH 1050 mm	therm-RP 1200 1050 mm	therm-RP 1200 T 1050 mm	therm-RP 1400 1050 mm	therm-RP 1400 T 1050 mm	therm-RP 1600 1050 mm	therm-RP 1600 T 1050 mm
Width	mm	therm-RP 900 T 800 mm	therm-RP 1000 800 mm	therm-RP 1000 T 800 mm	therm-RP 1000 EH 800 mm	therm-RP 1000 T EH 800 mm	therm-RP 1200 800 mm	therm-RP 1200 T 800 mm	therm-RP 1400 800 mm	therm-RP 1400 T 800 mm	therm-RP 1600 800 mm	therm-RP 1600 T 800 mm
Height	mm	therm-RP 900 T 1300 mm	therm-RP 1000 1015 mm	therm-RP 1000 T 1300 mm	therm-RP 1000 EH 1015 mm	therm-RP 1000 T EH 1300 mm	therm-RP 1200 1015 mm	therm-RP 1200 T 1300 mm	therm-RP 1400 1015 mm	therm-RP 1400 T 1300 mm	therm-RP 1600 1015 mm	therm-RP 1600 T 1300 mm
Hot water output	°C	therm-RP 900 T 12-85 °C	therm-RP 1000 12-80 °C	therm-RP 1000 T 12-80 °C	therm-RP 1000 EH 12-80 °C	therm-RP 1000 T EH 12-80 °C	therm-RP 1200 12-80 °C	therm-RP 1200 T 12-80 °C	therm-RP 1400 12-80 °C	therm-RP 1400 T 12-80 °C	therm-RP 1600 12-80 °C	therm-RP 1600 T 12-80 °C
Steam level	°C	therm-RP 900 T 155 °C	therm-RP 1000 140 °C	therm-RP 1000 T 140 °C	therm-RP 1000 EH 140 °C	therm-RP 1000 T EH 140 °C	therm-RP 1200 140 °C	therm-RP 1200 T 140 °C	therm-RP 1400 140 °C	therm-RP 1400 T 140 °C	therm-RP 1600 140 °C	therm-RP 1600 T 140 °C
Oil consumption at max. heating output	kg/h	therm-RP 900 T 5.8 kg/h	therm-RP 1000 6.0 kg/h	therm-RP 1000 T 6.0 kg/h	therm-RP 1000 EH 6.0 kg/h	therm-RP 1000 T EH 6.0 kg/h	therm-RP 1200 7.7 kg/h	therm-RP 1200 T 7.7 kg/h	therm-RP 1400 7.7 kg/h	therm-RP 1400 T 7.7 kg/h	therm-RP 1600 7.7 kg/h	therm-RP 1600 T 7.7 kg/h
Oil consumption at max. heating output	l/h	therm-RP 900 T 6.8 l/h	therm-RP 1000 7.0 l/h	therm-RP 1000 T 7.0 l/h	therm-RP 1000 EH 7.0 l/h	therm-RP 1000 T EH 7.0 l/h	therm-RP 1200 9,2 l/h	therm-RP 1200 T 9,2 l/h	therm-RP 1400 9.2 l/h	therm-RP 1400 T 9.2 l/h	therm-RP 1600 9.2 l/h	therm-RP 1600 T 9.2 l/h
Oil consumption T45	kg/h	therm-RP 900 T 4.2 kg/h	therm-RP 1000 5.6 kg/h	therm-RP 1000 T 5.6 kg/h	therm-RP 1000 EH 5.6 kg/h	therm-RP 1000 T EH 5.6 kg/h	therm-RP 1200 5.6 kg/h	therm-RP 1200 T 5.6 kg/h	therm-RP 1400 5.6 kg/h	therm-RP 1400 T 5.6 kg/h	therm-RP 1600 5.6 kg/h	therm-RP 1600 T 5.6 kg/h
Oil consumption T45	l/h	therm-RP 900 T 5.0 l/h	therm-RP 1000 6.6 l/h	therm-RP 1000 T 6.6 l/h	therm-RP 1000 EH 6.6 l/h	therm-RP 1000 T EH 6.6 l/h	therm-RP 1200 6.6 l/h	therm-RP 1200 T 6.6 l/h	therm-RP 1400 6.6 l/h	therm-RP 1400 T 6.6 l/h	therm-RP 1600 6.6 l/h	therm-RP 1600 T 6.6 l/h
Heating output	kW	therm-RP 900 T 60 kW	therm-RP 1000 65 kW	therm-RP 1000 T 65 kW	therm-RP 1000 EH 65 kW	therm-RP 1000 T EH 65 kW	therm-RP 1200 84 kW	therm-RP 1200 T 84 kW	therm-RP 1400 84 kW	therm-RP 1400 T 84 kW	therm-RP 1600 84 kW	therm-RP 1600 T 84 kW
Weight	kg	therm-RP 900 T 205 kg	therm-RP 1200 210 kg	therm-RP 1200 T 218 kg	therm-RP 1400 210 kg	therm-RP 1400 T 218 kg	therm-RP 1600 210 kg	therm-RP 1600 T 218 kg
