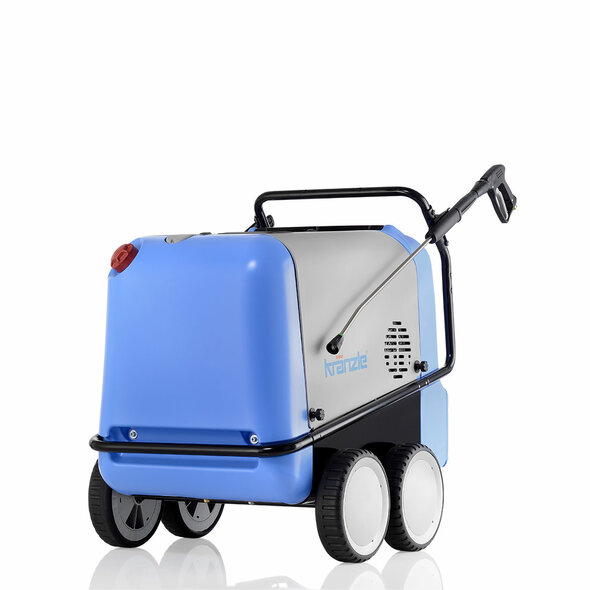

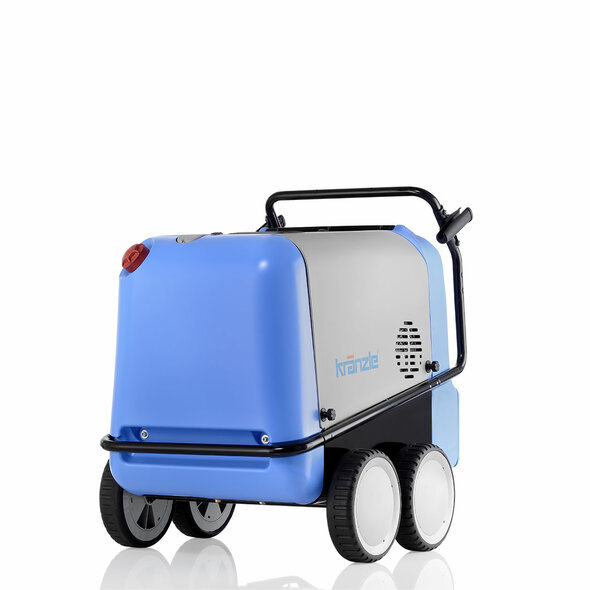

therm 635-1

Nr. art. 634000

Seria Kränzle-therm-1 do gorącej wody imponuje wysokim ciśnieniem roboczym do 195 barów i ogromnym wydatkiem wody do 20 l/min. Dzięki pełnemu wyposażeniu technicznemu i terenowemu podwoziu, seria ta nie pozostawia nic do życzenia pod względem wydajności i obsługi. Wszystkie modele są dostępne z lub bez bębna na wąż.

  • Błyskawiczny system wtykowy D12
  • System Total-Stop z opóźnionym wyłączeniem
  • Bezpieczne wyłączanie
  • Regulacja ciśnienia
  • zabezpieczeniem Twist Stop
  • Pobór środków myjących
  • Hamulec nastawny
  • pojemnik na wodę: pojemność 12 l
  • Termostat cyfrowy
  • Czujnik przepływu
  • Napowietrzanie komory spalania
  • Optyczna kontrola płomienia
  • Ochrona przed przegrzaniem
  • Wyłączanie palnika w przypadku braku oleju opałowego
  • Licznik roboczogodzin
  • Zbiornik paliwa: 35 l
  • Zdejmowana obudowa
  • Zorganizowany system
  • Cyfrowy panel sterowania
  • Optyczna kontrola płomienia und Ochrona przed przegrzaniem
Ciśnienie robocze
30-130 bar
Wydajność wody
10,6 l/min
Podłączenie Napięcie
230 V
Podłączenie Faza
1 ~
Podłączenie Częstotliwość
50 Hz
Wydatek wody gorącej
12-89 °C
Samochody osobowe, firmy transportowe
Rolnictwo, hodowla zwierząt
Usługi komunalne, budownictwo
Przemysł sanitarny, żywność
Przemysł

Specyfikacje techniczne

therm 635-1
Nr. art. 634000
therm 635-1 T
Nr. art. 634010
therm 875-1
Nr. art. 634200
therm 875-1 T
Nr. art. 634210
therm 895-1
Nr. art. 634400
therm 895-1 T
Nr. art. 634410
therm 1165-1
Nr. art. 634600
therm 1165-1 T
Nr. art. 634610
Nr. art. 634000634010634200634210634400634410634600634610
Ciśnienie robocze bar therm 635-1 30-130 bar therm 635-1 T 30-130 bar therm 875-1 30-175 bar therm 875-1 T 30-175 bar therm 895-1 30-195 bar therm 895-1 T 30-195 bar therm 1165-1 30-165 bar therm 1165-1 T 30-165 bar
Ciśnienie robocze MPa therm 635-1 3-13 MPa therm 635-1 T 3-13 MPa therm 875-1 3-17,5 MPa therm 875-1 T 3-17,5 MPa therm 895-1 3-19,5 MPa therm 895-1 T 3-19,5 MPa therm 1165-1 3-16,5 MPa therm 1165-1 T 3-16,5 MPa
Wydajność wody l/h therm 635-1 636 l/h therm 635-1 T 636 l/h therm 875-1 876 l/h therm 875-1 T 876 l/h therm 895-1 894 l/h therm 895-1 T 894 l/h therm 1165-1 1164 l/h therm 1165-1 T 1164 l/h
Dozwolone nadciśnienie bar therm 635-1 145 bar therm 635-1 T 145 bar therm 875-1 190 bar therm 875-1 T 190 bar therm 895-1 215 bar therm 895-1 T 215 bar therm 1165-1 180 bar therm 1165-1 T 180 bar
Dozwolone nadciśnienie MPa therm 635-1 14,5 MPa therm 635-1 T 14,5 MPa therm 875-1 19 MPa therm 875-1 T 19 MPa therm 895-1 21,5 MPa therm 895-1 T 21,5 MPa therm 1165-1 18 MPa therm 1165-1 T 18 MPa
Prędkość obrotowa napędu U/min therm 635-1 1400 U/min therm 635-1 T 1400 U/min therm 875-1 1400 U/min therm 875-1 T 1400 U/min therm 895-1 1400 U/min therm 895-1 T 1400 U/min therm 1165-1 1400 U/min therm 1165-1 T 1400 U/min
Podłączenie Napięcie V therm 635-1 230 V therm 635-1 T 230 V therm 875-1 400 V therm 875-1 T 400 V therm 895-1 400 V therm 895-1 T 400 V therm 1165-1 400 V therm 1165-1 T 400 V
Podłączenie Faza ~ therm 635-1 1 ~ therm 635-1 T 1 ~ therm 875-1 3 ~ therm 875-1 T 3 ~ therm 895-1 3 ~ therm 895-1 T 3 ~ therm 1165-1 3 ~ therm 1165-1 T 3 ~
Podłączenie Częstotliwość Hz therm 635-1 50 Hz therm 635-1 T 50 Hz therm 875-1 50 Hz therm 875-1 T 50 Hz therm 895-1 50 Hz therm 895-1 T 50 Hz therm 1165-1 50 Hz therm 1165-1 T 50 Hz
Podłączenie Aktualna strona A therm 635-1 15 A therm 635-1 T 15 A therm 875-1 8,7 A therm 875-1 T 8,7 A therm 895-1 12 A therm 895-1 T 12 A therm 1165-1 12 A therm 1165-1 T 12 A
Pobór mocy kW therm 635-1 3,4 kW therm 635-1 T 3,4 kW therm 875-1 4,8 kW therm 875-1 T 4,8 kW therm 895-1 6,4 kW therm 895-1 T 6,4 kW therm 1165-1 6,4 kW therm 1165-1 T 6,4 kW
Moc użyteczna kW therm 635-1 2,3 kW therm 635-1 T 2,3 kW therm 875-1 4,0 kW therm 875-1 T 4,0 kW therm 895-1 5,0 kW therm 895-1 T 5,0 kW therm 1165-1 5,0 kW therm 1165-1 T 5,0 kW
Kabel zasilający Długość m therm 635-1 5 m therm 635-1 T 5 m therm 875-1 7.5 m therm 875-1 T 7.5 m therm 895-1 7.5 m therm 895-1 T 7.5 m therm 1165-1 7.5 m therm 1165-1 T 7.5 m
Długość mm therm 635-1 1050 mm therm 635-1 T 1050 mm therm 875-1 1050 mm therm 875-1 T 1050 mm therm 895-1 1050 mm therm 895-1 T 1050 mm therm 1165-1 1050 mm therm 1165-1 T 1050 mm
Szerokość mm therm 635-1 800 mm therm 635-1 T 800 mm therm 875-1 800 mm therm 875-1 T 800 mm therm 895-1 800 mm therm 895-1 T 800 mm therm 1165-1 800 mm therm 1165-1 T 800 mm
Wysokość mm therm 635-1 1015 mm therm 635-1 T 1300 mm therm 875-1 1015 mm therm 875-1 T 1300 mm therm 895-1 1015 mm therm 895-1 T 1300 mm therm 1165-1 1015 mm therm 1165-1 T 1300 mm
Wydatek wody gorącej °C therm 635-1 12-89 °C therm 635-1 T 12-89 °C therm 875-1 12-87 °C therm 875-1 T 12-87 °C therm 895-1 12-86 °C therm 895-1 T 12-86 °C therm 1165-1 12-82 °C therm 1165-1 T 12-82 °C
Stopień pary °C therm 635-1 145 °C therm 635-1 T 145 °C therm 875-1 155 °C therm 875-1 T 155 °C therm 895-1 155 °C therm 895-1 T 155 °C therm 1165-1 155 °C therm 1165-1 T 155 °C
Zużycie oleju opałowego maks. kg/h therm 635-1 5.1 kg/h therm 635-1 T 5.1 kg/h therm 875-1 5.8 kg/h therm 875-1 T 5.8 kg/h therm 895-1 6.0 kg/h therm 895-1 T 6.0 kg/h therm 1165-1 7.1 kg/h therm 1165-1 T 7.1 kg/h
Zużycie oleju opałowego maks. l/h therm 635-1 6.1 l/h therm 635-1 T 6.1 l/h therm 875-1 6.8 l/h therm 875-1 T 6.8 l/h therm 895-1 7.1 l/h therm 895-1 T 7.1 l/h therm 1165-1 8.5 l/h therm 1165-1 T 8.5 l/h
Zużycie oleju opałowego T45 kg/h therm 635-1 3.2 kg/h therm 635-1 T 3.2 kg/h therm 875-1 4.2 kg/h therm 875-1 T 4.2 kg/h therm 895-1 4.3 kg/h therm 895-1 T 4.3 kg/h therm 1165-1 5.6 kg/h therm 1165-1 T 5.6 kg/h
Zużycie oleju opałowego T45 l/h therm 635-1 3.8 l/h therm 635-1 T 3.8 l/h therm 875-1 5.0 l/h therm 875-1 T 5.0 l/h therm 895-1 5.1 l/h therm 895-1 T 5.1 l/h therm 1165-1 6.6 l/h therm 1165-1 T 6.6 l/h
Moc grzewcza kW therm 635-1 55 kW therm 635-1 T 55 kW therm 875-1 60 kW therm 875-1 T 60 kW therm 895-1 65 kW therm 895-1 T 65 kW therm 1165-1 78 kW therm 1165-1 T 78 kW
Masa kg therm 635-1 197 kg therm 635-1 T 205 kg therm 875-1 197 kg therm 875-1 T 205 kg therm 895-1 214 kg therm 895-1 T 222 kg therm 1165-1 214 kg therm 1165-1 T 222 kg
